SERPENT AUTOSPORT
Wheel Accessories
Lug Nuts, Bolts, Studs, Wheel Spacers/Adapter


Phone or FAX: (818) 848-3681 / Contact/Order Form

  E-MAIL:  serpentautosport@yahoo.com

Center Caps/Badges    Centering Rings    Lug Bolts    Spacers    Wheel Studs    Wheel Adapters    Wobble Nuts

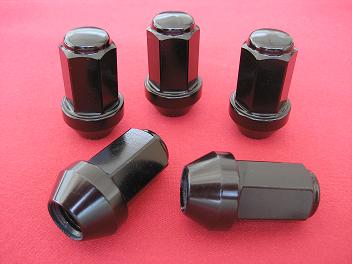

Aluminum Racing Lug Nuts

M12 x 1.5  17mm Hex

Black Anodized finish.

Each nut weighs 18.5 grams

Set of 16 - $112.00          Set of 20 - $140.00

Made in Italy                   TUV certified

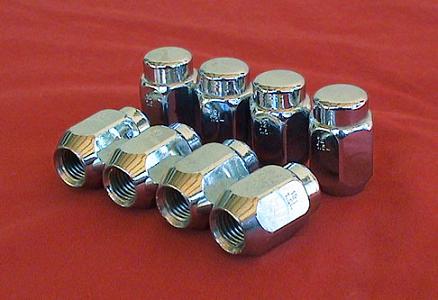

Left Hand Thread  Lug Nuts  for 105 cars

For 105 series cars that have not been converted to RH. These lug nuts are LH 12mm x1.5.

Set of Left & Right-hand thread Lug Nuts  -  $55.00 (8 lefts,8 rights)

Now available in 1/2" for Plymouth, Chrysler, Willy's, etc.

Set of Left & Right-hand thread Lug Nuts  -  $65.00 (10 lefts,10 rights)

Sold in Sets only

Bulge Cone Seat Lug Nut

Sizes available 12mm x 1.5, 12mm x 1.25    17 mm Hex

Set of 16 - $32.00               Set of 20 - $40.00

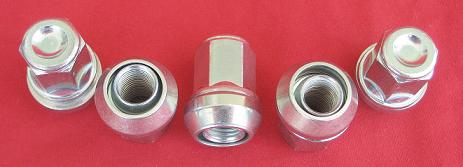

Variation Nut            AKA Wobble Nut

Closed Nut for PCD Variation Hex19 M12x1,5x34

Set of 16 - $112.00           Set of 20 - $140.00

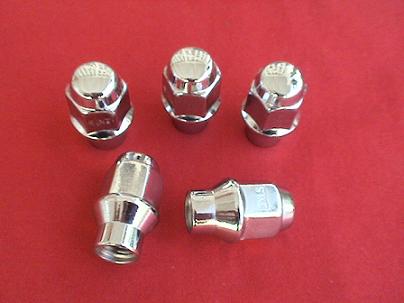

Extended Thread Lug Nut

Sizes available 12mm x 1.5, 12mm x 1.25M    19 mm Hex

Works well with 20mm spacer pictured below.

Set of 16 - $32.00             Set of 20 - $40.00

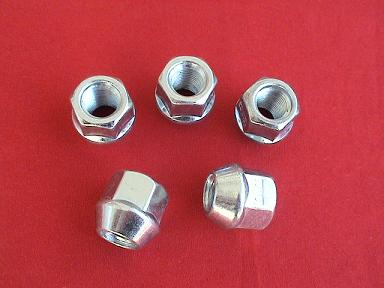

Open Bulge

Sizes available 12mm x 1.5, 12mm x 1.25

Set of 16 $16.00

Set of 20 $20.00

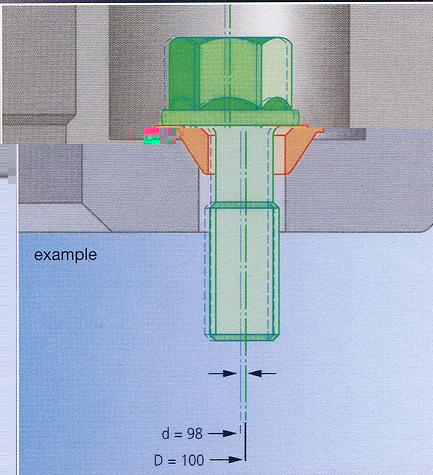

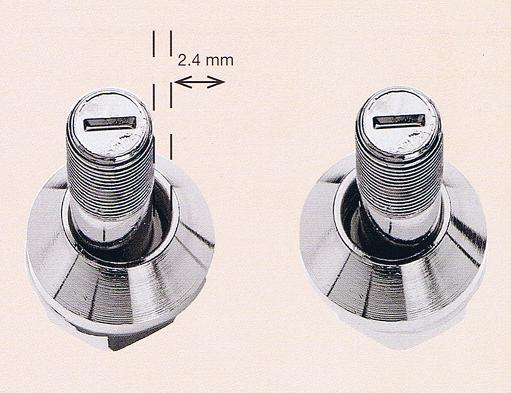

Variation Bolt            AKA Wobble Bolt       Bolt for PCD Variation
Hex17  M12 x 1.25 x 29.5

With this new item you can use one wheel with unified center bore for several applications. This bolt is fitted with a mobile conical washer which keeps the bolt axis perpendicular to the car flange while allowing radial displacement and a consequent PCD variation.

Set of 16 - $64.00      Set of 20 - $80.00

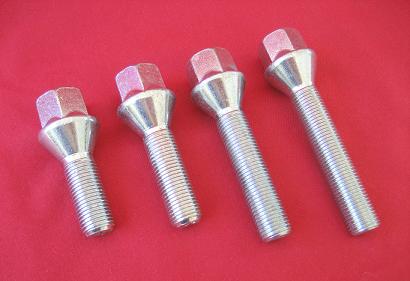

Lug Bolts for Alfa 164 and Fiat models. For use on aftermarket wheels.

17 mm Hex - M12x1.25 cone seat 60 *

Available in thread lengths 28, 36, 50, 60mm

Set of 16 - $34.00               Set of 20 - $42.00
Made in Italy                         TUV certified

Short Hex Head   17 mm Hex - M12x1.25 cone seat 60 *

Ideal for under cap and wheel spacer application.

Overall length 41 mm.       Thread length 22mm.

Set of 16 - $48.00                Set of 20 - $60.00

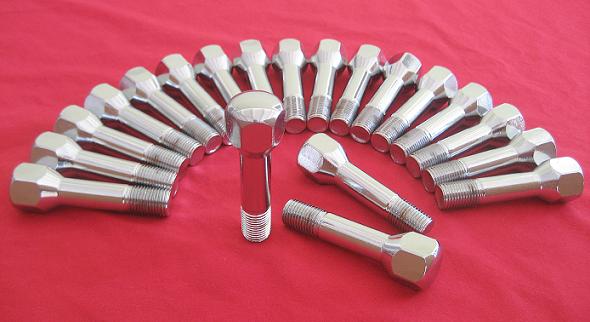

Ferrai wheel bolts  made in Italy.

14mm x 1.5 x 52mm shaft length. 20mm thread length.

Chrome plated. TUV Certified reg# 12 1009264 DIN EN ISO

Set of 20 - $200.00

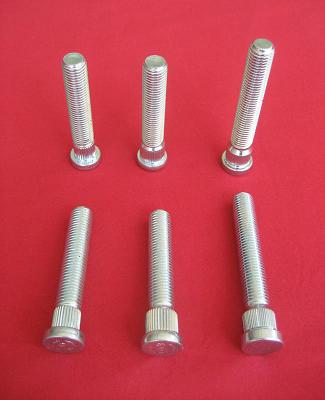

Spline Wheel Studs - Right hand thread
Wheel Stud is the press-in style.

Thread Size:                12mm x 1.5 RH

Knurl Diameter:         12mm  or  14mm

Knurl Length:             12.5mm
Thread Length:           52.5mm
Underhead Length:    65mm
Overall Length:           70mm or  82mm

Set of 4 - $16.00        Set of 5 - $20.00
Made in Italy               TUV certified


Wheel Studs for Alfa & Fiat

Convert your Afa 164 or Fiat with these studs and use lug nuts
in place of wheel bolts. For use with aftermarket wheels.

1.25 x 1.25, 1.00" thread length

1.25 x 1.25, 1 1/4" thread length

1.25 x 1.25, 2 1/2" thread length

Set of 16 - $32.00             Set of 20 - $40.00

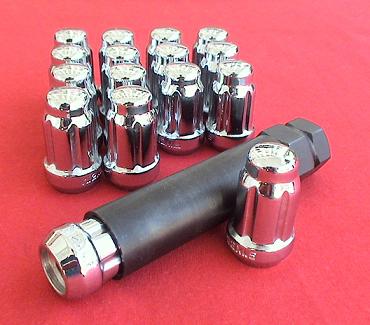

Small Diameter Tuner Lug Nuts

External pattern design produces better torque. Bulge design provides greater seating surface than traditional Tuner lug nuts. Key socket is made from Chrome Vanadium Steel for maximum strength. 12mm x 1.5

16 S/D Lug Nuts &  Key Socket - $44.00

20 S/D Lug Nuts &  Key Socket - $55.00

Save 20%  when purchased with a set of Serpent Wheels!

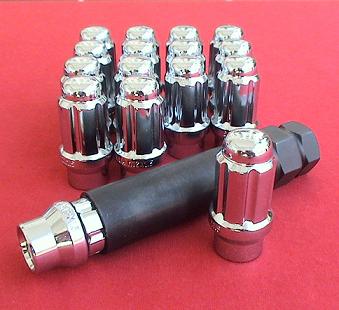

Small Diameter ET Tuner Lug Nuts

External pattern design produces better torque. Bulge design provides greater seating surface than traditional Tuner lug nuts. Key socket is made from Chrome Vanadium Steel for maximum strength. 12mm x 1.5,

16 S/D ET Lug Nuts &  Key Socket - $44.00

20 S/D ET Lug Nuts &  Key Socket - $55.00

Save 20%  when purchased with a set of Serpent Wheels!

Back to Top

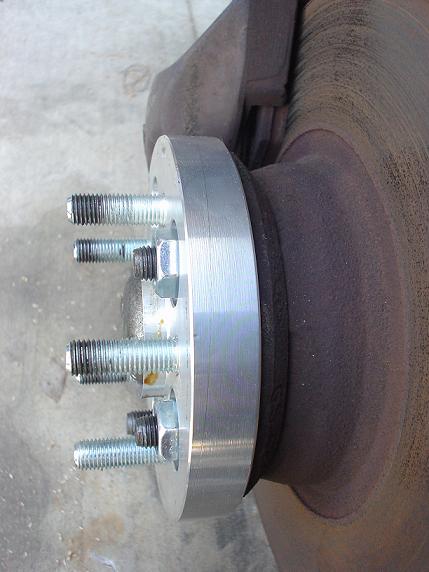

Serpent Autosport Custom Made Wheel Spacers

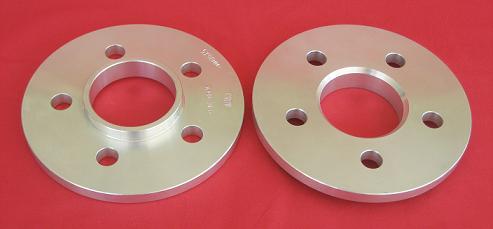

Our hub and wheel centric Spacers are custom made from 6061aluminum alloy that is both light in weight and extremely strong. These spacers are up to 70 percent lighter than steel spacers.

.250"  (6.0mm)  up to  1.00”  (25.4mm)    $135.00 per pair

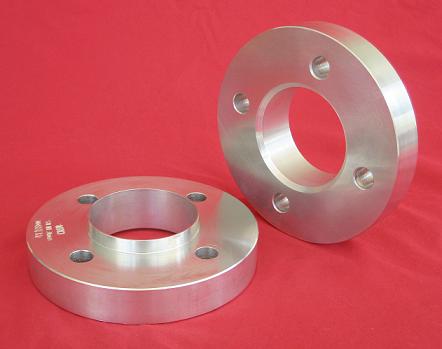

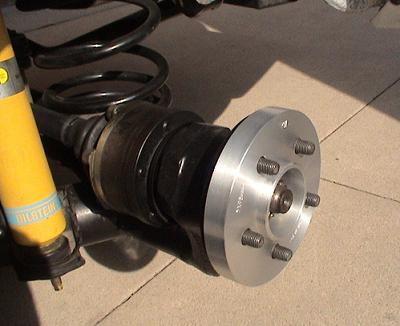

Hub and wheel centric 20mm Spacer for use only with extended thread lug nuts or longer wheel studs. These spacers can be made in any thickness 6mm and up. Spacers come in handy when your wheels cannot be had in the optimum ET (offset or backspacing)                                                $135.00 per pair
Our hub and wheel centric 25.4mm Spacers are for use only with extended thread lug nuts or longer wheel studs. These spacers can be made in any thickness 6mm and up.

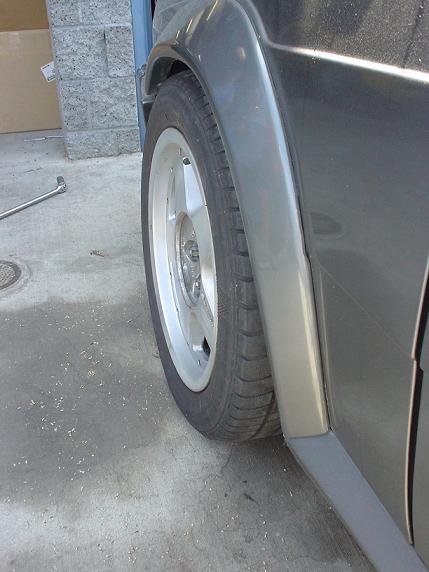

Spacers come in handy when your wheels cannot be had in the optimum ET. Maintaining backspacing is important to clearing suspension components and even if you do, these will spacers will allow you to get that optimal filled-out wheelwell look!
                           $155.00 per pair

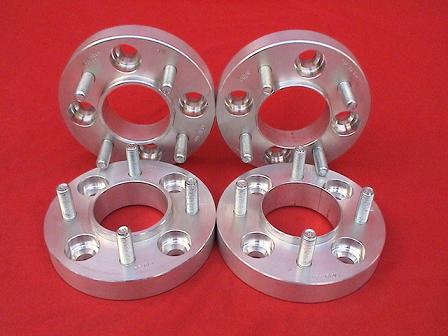

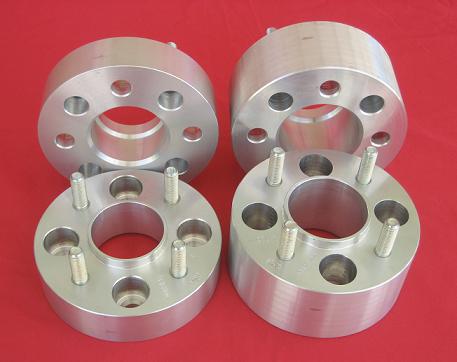

Spacers and Wheel Adapters

Custom Made (USA) to your exact requirements.

Price per pair.

.750”  (19.0mm)               $175.00

1.00”  (25.4mm)               $180.00

1.25"   (32mm)                  $190.00

1.50"   (38mm)                  $200.00


1.75"   (44.5mm)               $210.00

2.00"   (50.8mm)               $220.00

2.50"   (63.5mm)               $240.00

3.00"   (76.2mm)               $260.00

Our Custom Spacers and Wheels Adapters are Hub and Wheel Centric.

Back to Top

Spacer/Adapters can be made to change lug pattern from standard Alfa 4x108 or 5x98 to match any wheel! Minimum thickness for aluminum adapter is 20mm, minimum thickness for a spacer is 5mm.

IMPORTANT

When ordering, please provide the following information.

1)   Vehicle year, make, and model.
2)

Spacer or Adapter thickness and quantity.
2)   Vehicles bolt pattern (PCD) to wheel bolt pattern.
3)   Vehicle Hub Diameter to Wheel Centerbore
.
4)   Stock Wheel Offset and replacement Wheel offset**.
5)   Vehicle Lug Thread Size (where applicable, for lugnuts).

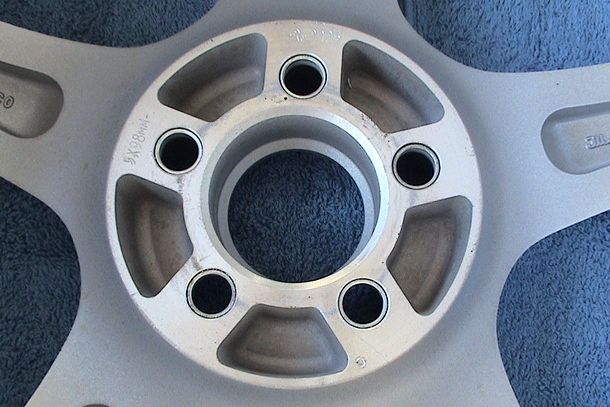

*Wheels must have pockets in the mounting surface for adapters 20-30 mm thick to work (see image left).

** If new wheel being fitted. Helps calculate backspacing.

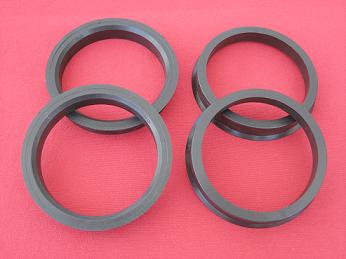

Hub Centric Rings may be required to fit Serpent or other aftermarket rims.

These hub-centric rings are of High quality poly-carbon.
Below are typical wheel center bore to hub diameters:

 67 o.d.  -  57.1 i.d.
 72 o.d.  -  57.1 i.d.
 73 o.d.  -  57.1 i.d.
 74 o.d.  -  57.1 i.d.
 67 o.d.  -  58.1 i.d.   Alfa 164/Fiat/ Lancia
 72 o.d.  -  58.1 i.d.   Alfa 164/Fiat/Lancia
 73 o.d.  -  58.1 i.d.   Alfa 164/Fiat/Lancia
 74 o.d.  -  58.6 i.d    Alfa GTV6/Milano/Maserati Biturbo
 67 o.d.  -  58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo
 72 o.d.  -  58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo
 73 o.d.  -  58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo
 74 o.d.  -  58.6 i.d    Alfa GTV6/Milano/Maserati Biturbo
 73 o.d.  -  64.0 i.d.
 Set of 4  $39.00
Custom set (not listed) $55.00

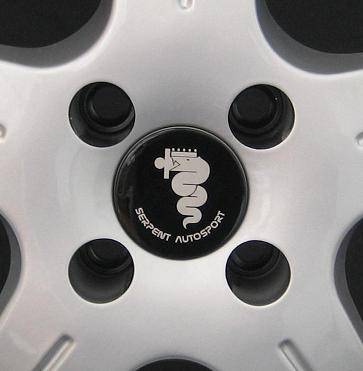

 Serpent Autosport offers
 wheel
 caps!

 Serpent, Alfa RomeoFiat, and  Maserati caps.

 They fit all Serpent Autosport  wheels.
           $20.00ea./ $75.00 Set (4)


NOTE: Certain wheel types require circlip retainers.
New!

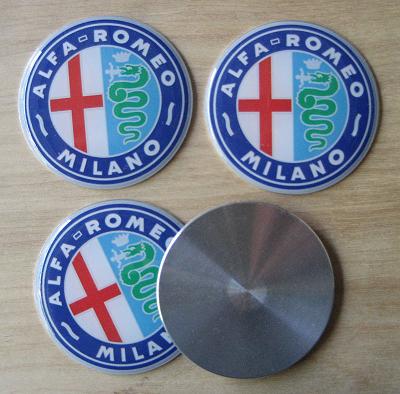

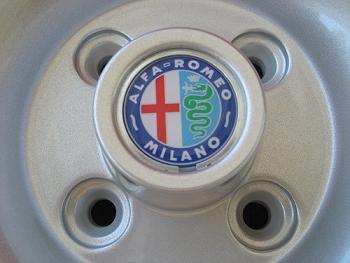

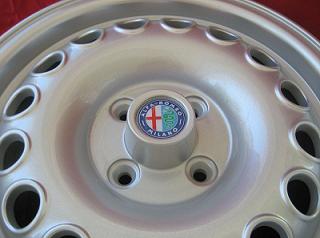

Alfa Romeo Milano wheel badges/center caps

47 mm diameter aluminum badges fit factory wheels and are held in place with factory circlip. Also fits GTA style wheels.

Set of 4 - $75.00
